Client/Server¶
Trivy has client/server mode. Trivy server has vulnerability database and Trivy client doesn't have to download vulnerability database. It is useful if you want to scan images or files at multiple locations and do not want to download the database at every location.
| Client/Server Mode | Image | Rootfs | Filesystem | Repository | Config | K8s |
|---|---|---|---|---|---|---|
| Supported | ✅ | ✅ | ✅ | ✅ | - | - |
Some scanners run on the client side, even in client/server mode.
| Scanner | Run on Client or Server |
|---|---|
| Vulnerability | Server |
| Misconfiguration | Client1 |
| Secret | Client2 |
| License | Server |
Note
Scanning of misconfigurations and licenses is performed on the client side (as in standalone mode). Otherwise, the client would need to send files to the server that may contain sensitive information.
Server¶
At first, you need to launch Trivy server. It downloads vulnerability database automatically and continue to fetch the latest DB in the background.
$ trivy server --listen localhost:8080
2019-12-12T15:17:06.551+0200 INFO Need to update DB
2019-12-12T15:17:56.706+0200 INFO Reopening DB...
2019-12-12T15:17:56.707+0200 INFO Listening localhost:8080...
If you want to accept a connection from outside, you have to specify 0.0.0.0 or your ip address, not localhost.
$ trivy server --listen 0.0.0.0:8080
Remote image scan¶
Then, specify the server address for image command.
$ trivy image --server http://localhost:8080 alpine:3.10
Result
alpine:3.10 (alpine 3.10.2)
===========================
Total: 3 (UNKNOWN: 0, LOW: 1, MEDIUM: 2, HIGH: 0, CRITICAL: 0)
+---------+------------------+----------+-------------------+---------------+
| LIBRARY | VULNERABILITY ID | SEVERITY | INSTALLED VERSION | FIXED VERSION |
+---------+------------------+----------+-------------------+---------------+
| openssl | CVE-2019-1549 | MEDIUM | 1.1.1c-r0 | 1.1.1d-r0 |
+ +------------------+ + + +
| | CVE-2019-1563 | | | |
+ +------------------+----------+ + +
| | CVE-2019-1547 | LOW | | |
+---------+------------------+----------+-------------------+---------------+
Remote scan of local filesystem¶
Also, there is a way to scan local file system:
$ trivy fs --server http://localhost:8080 --severity CRITICAL ./integration/testdata/fixtures/fs/pom/
Result
pom.xml (pom)
=============
Total: 24 (CRITICAL: 24)
+---------------------------------------------+------------------+----------+-------------------+--------------------------------+---------------------------------------+
| LIBRARY | VULNERABILITY ID | SEVERITY | INSTALLED VERSION | FIXED VERSION | TITLE |
+---------------------------------------------+------------------+----------+-------------------+--------------------------------+---------------------------------------+
| com.fasterxml.jackson.core:jackson-databind | CVE-2017-17485 | CRITICAL | 2.9.1 | 2.8.11, 2.9.4 | jackson-databind: Unsafe |
| | | | | | deserialization due to |
| | | | | | incomplete black list (incomplete |
| | | | | | fix for CVE-2017-15095)... |
| | | | | | -->avd.aquasec.com/nvd/cve-2017-17485 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2018-11307 | | | 2.7.9.4, 2.8.11.2, 2.9.6 | jackson-databind: Potential |
| | | | | | information exfiltration with |
| | | | | | default typing, serialization |
| | | | | | gadget from MyBatis |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-11307 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2018-14718 | | | 2.6.7.2, 2.9.7 | jackson-databind: arbitrary code |
| | | | | | execution in slf4j-ext class |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-14718 |
+ +------------------+ + + +---------------------------------------+
| | CVE-2018-14719 | | | | jackson-databind: arbitrary |
| | | | | | code execution in blaze-ds-opt |
| | | | | | and blaze-ds-core classes |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-14719 |
+ +------------------+ + + +---------------------------------------+
| | CVE-2018-14720 | | | | jackson-databind: exfiltration/XXE |
| | | | | | in some JDK classes |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-14720 |
+ +------------------+ + + +---------------------------------------+
| | CVE-2018-14721 | | | | jackson-databind: server-side request |
| | | | | | forgery (SSRF) in axis2-jaxws class |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-14721 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2018-19360 | | | 2.6.7.3, 2.7.9.5, 2.8.11.3, | jackson-databind: improper |
| | | | | 2.9.8 | polymorphic deserialization |
| | | | | | in axis2-transport-jms class |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-19360 |
+ +------------------+ + + +---------------------------------------+
| | CVE-2018-19361 | | | | jackson-databind: improper |
| | | | | | polymorphic deserialization |
| | | | | | in openjpa class |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-19361 |
+ +------------------+ + + +---------------------------------------+
| | CVE-2018-19362 | | | | jackson-databind: improper |
| | | | | | polymorphic deserialization |
| | | | | | in jboss-common-core class |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-19362 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2018-7489 | | | 2.7.9.3, 2.8.11.1, 2.9.5 | jackson-databind: incomplete fix |
| | | | | | for CVE-2017-7525 permits unsafe |
| | | | | | serialization via c3p0 libraries |
| | | | | | -->avd.aquasec.com/nvd/cve-2018-7489 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-14379 | | | 2.7.9.6, 2.8.11.4, 2.9.9.2 | jackson-databind: default |
| | | | | | typing mishandling leading |
| | | | | | to remote code execution |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-14379 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-14540 | | | 2.9.10 | jackson-databind: |
| | | | | | Serialization gadgets in |
| | | | | | com.zaxxer.hikari.HikariConfig |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-14540 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-14892 | | | 2.6.7.3, 2.8.11.5, 2.9.10 | jackson-databind: Serialization |
| | | | | | gadgets in classes of the |
| | | | | | commons-configuration package |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-14892 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-14893 | | | 2.8.11.5, 2.9.10 | jackson-databind: |
| | | | | | Serialization gadgets in |
| | | | | | classes of the xalan package |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-14893 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-16335 | | | 2.9.10 | jackson-databind: |
| | | | | | Serialization gadgets in |
| | | | | | com.zaxxer.hikari.HikariDataSource |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-16335 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-16942 | | | 2.9.10.1 | jackson-databind: |
| | | | | | Serialization gadgets in |
| | | | | | org.apache.commons.dbcp.datasources.* |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-16942 |
+ +------------------+ + + +---------------------------------------+
| | CVE-2019-16943 | | | | jackson-databind: |
| | | | | | Serialization gadgets in |
| | | | | | com.p6spy.engine.spy.P6DataSource |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-16943 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-17267 | | | 2.9.10 | jackson-databind: Serialization |
| | | | | | gadgets in classes of |
| | | | | | the ehcache package |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-17267 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-17531 | | | 2.9.10.1 | jackson-databind: |
| | | | | | Serialization gadgets in |
| | | | | | org.apache.log4j.receivers.db.* |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-17531 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2019-20330 | | | 2.8.11.5, 2.9.10.2 | jackson-databind: lacks |
| | | | | | certain net.sf.ehcache blocking |
| | | | | | -->avd.aquasec.com/nvd/cve-2019-20330 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2020-8840 | | | 2.7.9.7, 2.8.11.5, 2.9.10.3 | jackson-databind: Lacks certain |
| | | | | | xbean-reflect/JNDI blocking |
| | | | | | -->avd.aquasec.com/nvd/cve-2020-8840 |
+ +------------------+ + +--------------------------------+---------------------------------------+
| | CVE-2020-9546 | | | 2.7.9.7, 2.8.11.6, 2.9.10.4 | jackson-databind: Serialization |
| | | | | | gadgets in shaded-hikari-config |
| | | | | | -->avd.aquasec.com/nvd/cve-2020-9546 |
+ +------------------+ + + +---------------------------------------+
| | CVE-2020-9547 | | | | jackson-databind: Serialization |
| | | | | | gadgets in ibatis-sqlmap |
| | | | | | -->avd.aquasec.com/nvd/cve-2020-9547 |
+ +------------------+ + + +---------------------------------------+
| | CVE-2020-9548 | | | | jackson-databind: Serialization |
| | | | | | gadgets in anteros-core |
| | | | | | -->avd.aquasec.com/nvd/cve-2020-9548 |
+---------------------------------------------+------------------+----------+-------------------+--------------------------------+---------------------------------------+
Remote scan of root filesystem¶
Also, there is a way to scan root file system:
$ trivy rootfs --server http://localhost:8080 --severity CRITICAL /tmp/rootfs
Result
/tmp/rootfs (alpine 3.10.2)
Total: 1 (CRITICAL: 1)
┌───────────┬────────────────┬──────────┬───────────────────┬───────────────┬─────────────────────────────────────────────────────────────┐
│ Library │ Vulnerability │ Severity │ Installed Version │ Fixed Version │ Title │
├───────────┼────────────────┼──────────┼───────────────────┼───────────────┼─────────────────────────────────────────────────────────────┤
│ apk-tools │ CVE-2021-36159 │ CRITICAL │ 2.10.4-r2 │ 2.10.7-r0 │ libfetch before 2021-07-26, as used in apk-tools, xbps, and │
│ │ │ │ │ │ other products, mishandles... │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2021-36159 │
└───────────┴────────────────┴──────────┴───────────────────┴───────────────┴─────────────────────────────────────────────────────────────┘
Remote scan of git repository¶
Also, there is a way to scan remote git repository:
$ trivy repo https://github.com/knqyf263/trivy-ci-test --server http://localhost:8080
Result
Cargo.lock (cargo)
==================
Total: 5 (UNKNOWN: 0, LOW: 0, MEDIUM: 2, HIGH: 2, CRITICAL: 0)
┌───────────┬─────────────────────┬──────────┬───────────────────┬───────────────┬─────────────────────────────────────────────────────────────┐
│ Library │ Vulnerability │ Severity │ Installed Version │ Fixed Version │ Title │
├───────────┼─────────────────────┼──────────┼───────────────────┼───────────────┼─────────────────────────────────────────────────────────────┤
│ ammonia │ CVE-2019-15542 │ HIGH │ 1.9.0 │ 2.1.0 │ Uncontrolled recursion in ammonia │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2019-15542 │
│ ├─────────────────────┼──────────┤ ├───────────────┼─────────────────────────────────────────────────────────────┤
│ │ CVE-2021-38193 │ MEDIUM │ │ 2.1.3, 3.1.0 │ An issue was discovered in the ammonia crate before 3.1.0 │
│ │ │ │ │ │ for Rust.... │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2021-38193 │
├───────────┼─────────────────────┤ ├───────────────────┼───────────────┼─────────────────────────────────────────────────────────────┤
│ smallvec │ CVE-2019-15551 │ │ 0.6.9 │ 0.6.10 │ An issue was discovered in the smallvec crate before 0.6.10 │
│ │ │ │ │ │ for Rust.... │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2019-15551 │
│ ├─────────────────────┼──────────┤ ├───────────────┼─────────────────────────────────────────────────────────────┤
│ │ CVE-2018-25023 │ HIGH │ │ 0.6.13 │ An issue was discovered in the smallvec crate before 0.6.13 │
│ │ │ │ │ │ for Rust.... │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2018-25023 │
│ ├─────────────────────┼──────────┤ │ ├─────────────────────────────────────────────────────────────┤
│ │ GHSA-66p5-j55p-32r9 │ MEDIUM │ │ │ smallvec creates uninitialized value of any type │
│ │ │ │ │ │ https://github.com/advisories/GHSA-66p5-j55p-32r9 │
└───────────┴─────────────────────┴──────────┴───────────────────┴───────────────┴─────────────────────────────────────────────────────────────┘
Pipfile.lock (pipenv)
=====================
Total: 8 (UNKNOWN: 0, LOW: 0, MEDIUM: 6, HIGH: 2, CRITICAL: 0)
┌─────────────────────┬────────────────┬──────────┬───────────────────┬────────────────────────┬──────────────────────────────────────────────────────────────┐
│ Library │ Vulnerability │ Severity │ Installed Version │ Fixed Version │ Title │
├─────────────────────┼────────────────┼──────────┼───────────────────┼────────────────────────┼──────────────────────────────────────────────────────────────┤
│ celery │ CVE-2021-23727 │ HIGH │ 4.3.0 │ 5.2.2 │ celery: stored command injection vulnerability may allow │
│ │ │ │ │ │ privileges escalation │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2021-23727 │
├─────────────────────┼────────────────┤ ├───────────────────┼────────────────────────┼──────────────────────────────────────────────────────────────┤
│ django │ CVE-2019-6975 │ │ 2.0.9 │ 1.11.19, 2.0.12, 2.1.7 │ python-django: memory exhaustion in │
│ │ │ │ │ │ django.utils.numberformat.format() │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2019-6975 │
│ ├────────────────┼──────────┤ ├────────────────────────┼──────────────────────────────────────────────────────────────┤
│ │ CVE-2019-3498 │ MEDIUM │ │ 1.11.18, 2.0.10, 2.1.5 │ python-django: Content spoofing via URL path in default 404 │
│ │ │ │ │ │ page │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2019-3498 │
│ ├────────────────┤ │ ├────────────────────────┼──────────────────────────────────────────────────────────────┤
│ │ CVE-2021-33203 │ │ │ 2.2.24, 3.1.12, 3.2.4 │ django: Potential directory traversal via ``admindocs`` │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2021-33203 │
├─────────────────────┼────────────────┤ ├───────────────────┼────────────────────────┼──────────────────────────────────────────────────────────────┤
│ urllib3 │ CVE-2019-11324 │ │ 1.24.1 │ 1.24.2 │ python-urllib3: Certification mishandle when error should be │
│ │ │ │ │ │ thrown │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2019-11324 │
│ ├────────────────┤ │ ├────────────────────────┼──────────────────────────────────────────────────────────────┤
│ │ CVE-2021-33503 │ │ │ 1.26.5 │ python-urllib3: ReDoS in the parsing of authority part of │
│ │ │ │ │ │ URL │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2021-33503 │
│ ├────────────────┼──────────┤ ├────────────────────────┼──────────────────────────────────────────────────────────────┤
│ │ CVE-2019-11236 │ MEDIUM │ │ 1.24.3 │ python-urllib3: CRLF injection due to not encoding the │
│ │ │ │ │ │ '\r\n' sequence leading to... │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2019-11236 │
│ ├────────────────┤ │ ├────────────────────────┼──────────────────────────────────────────────────────────────┤
│ │ CVE-2020-26137 │ │ │ 1.25.9 │ python-urllib3: CRLF injection via HTTP request method │
│ │ │ │ │ │ https://avd.aquasec.com/nvd/cve-2020-26137 │
└─────────────────────┴────────────────┴──────────┴───────────────────┴────────────────────────┴──────────────────────────────────────────────────────────────┘
Authentication¶
$ trivy server --listen localhost:8080 --token dummy
$ trivy image --server http://localhost:8080 --token dummy alpine:3.10
Endpoints¶
Health¶
Checks whether the Trivy server is running. Authentication is not required.
Example request:
curl -s 0.0.0.0:8080/healthz
ok
Returns the 200 OK status if the request was successful.
Version¶
Returns the version of the Trivy and all components (db, policy). Authentication is not required.
Example request:
curl -s 0.0.0.0:8080/version | jq
{
"Version": "dev",
"VulnerabilityDB": {
"Version": 2,
"NextUpdate": "2023-07-25T14:15:29.876639806Z",
"UpdatedAt": "2023-07-25T08:15:29.876640206Z",
"DownloadedAt": "2023-07-25T09:36:25.599004Z"
},
"JavaDB": {
"Version": 1,
"NextUpdate": "2023-07-28T01:03:52.169192565Z",
"UpdatedAt": "2023-07-25T01:03:52.169192765Z",
"DownloadedAt": "2023-07-25T09:37:48.906152Z"
},
"PolicyBundle": {
"Digest": "sha256:829832357626da2677955e3b427191212978ba20012b6eaa03229ca28569ae43",
"DownloadedAt": "2023-07-23T11:40:33.122462Z"
}
}
Returns the 200 OK status if the request was successful.

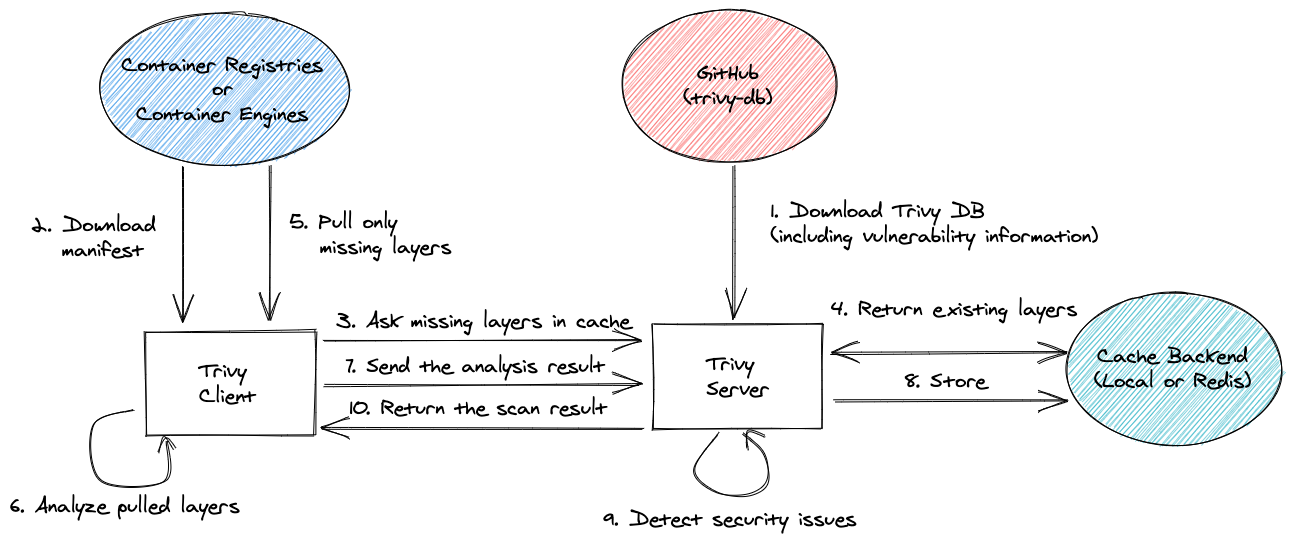

Architecture¶
